patient ventilator asynchrony in respiratory support.

Critically ill patients who are unable to breathe (sufficiently) on their own receive respiratory support using a mechanical ventilation system. During the weaning process, the spontaneous breathing effort of the patient is required. It is essential that the ventilator support is synchronized (in time) with the patient’s spontaneous breaths. A mismatch in this timing is referred to as Patient-Ventilator Asynchrony (PVA). To improve the patient’s comfort and recovery this PVA must be prevented. A key step in this process is the detection and classification of PVA.

highlights

  • automatically evaluating the patient-ventilator interaction
  • software building blocks have been designed into an integrated application
  • edge deployment is realized by implementing the algorithm on an actual ventilator

automatic detection and classification of PVA.

In current practice, experienced clinicians are able to detect PVA using the measured flows and pressures. However, this is a very time-consuming and challenging task. Therefore, with the help of Machine Learning, we have developed an algorithm that automatically detects and classifies PVA.

smart algorithm using long short term memory cells.

More specifically, a Recurrent Neural Network (RNN) with Long Short-Term Memory (LSTM) cells is used for the detection and classification of PVA. These types of models are the current state-of-the-art in recognizing patterns in time-series data.Unlike any feedforward neural network, LSTM cells have feedback connections. These feedback connections enable the recognition of patterns over time in sequenced data. This allows LSTM networks to process entire data sequences. Making it perfect for the detection and classification of PVA using the measured time-series data.

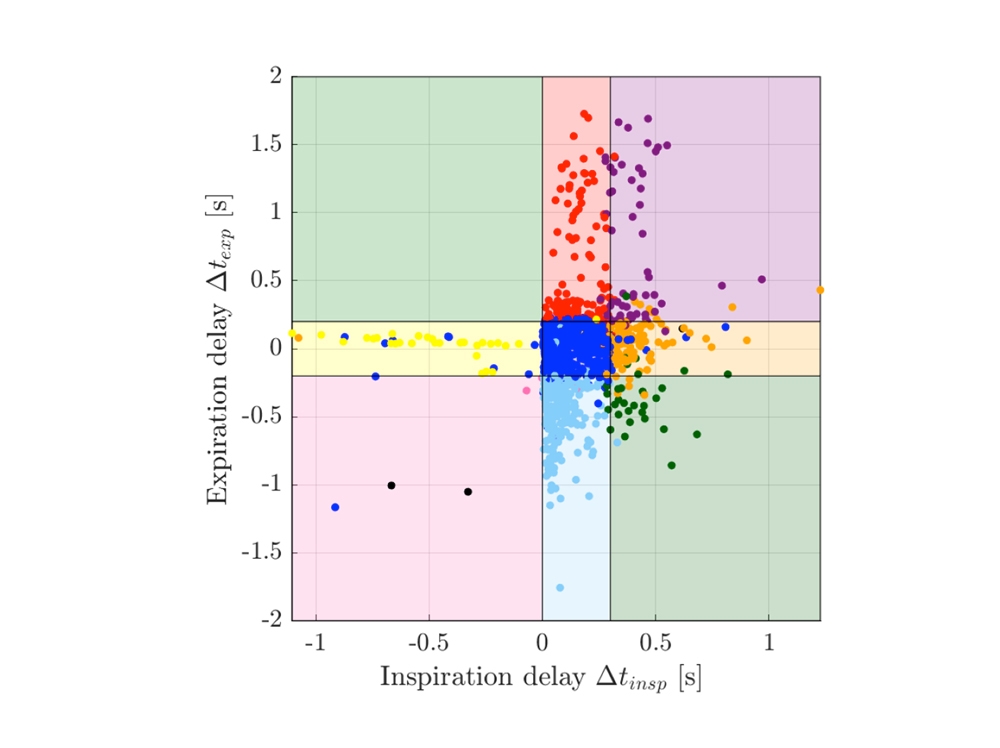

figure-asynchrony

starting from a concrete use-case is a success factor for applying AI.
